CI/CD with GitHub Actions
Chris Ayers
Chris Ayers
Senior Customer Engineer
Microsoft
Twitter: @Chris_L_Ayers Mastodon: @Chrisayers@hachyderm.io LinkedIn: - chris-l-ayers Blog: https://chris-ayers.com/ GitHub: Codebytes
Agenda
- YAML
- CI / CD
- Actions Overview
- Demos
| Feature | Description |
|---|---|
| Lists | Start with a – |
| Key-Value | Key: value |
| Objects | Objects: Properties of objects |
What is CI/CD?
flowchart LR
subgraph Continuous Integration
direction LR
A[Code] --Check In--> B[Build]
B -- Auto --> C[Unit Tests]
C -- Auto --> D[Dev Release]
D -- Auto --> E[Additional Tests]
end
flowchart LR
subgraph Continuous Delivery
direction LR
G[Code] --Check In--> H[Build]
H -- Auto --> I[Unit Tests]
I -- Auto --> J[Dev Release]
J -- Auto --> K[Additional Tests]
K --Manual--> L[Release]
end
linkStyle 4 color:red;
flowchart LR
subgraph Continuous Deployment
direction LR
M[Code] --Check In--> N[Build]
N -- Auto --> O[Unit Tests]
O -- Auto --> P[Dev Release]
P -- Auto --> Q[Additional Tests]
Q -- Auto --> R[Release]
end
linkStyle 4 color:green;
Actions Overview
- Actions are Event Driven
- Live in the .github/workflows folder
- Workflows are defined in YAML

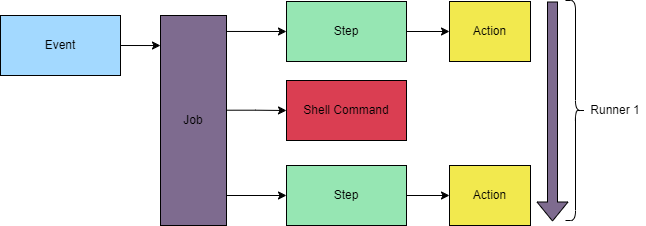

Workflows
- Events trigger workflows
- Workflows contain jobs
- Jobs contain steps
- Steps are commands or actions

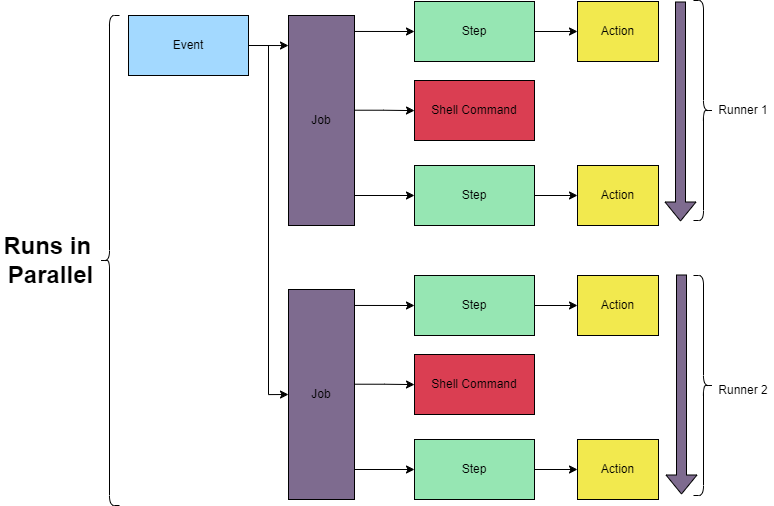

Jobs
- Workflows can contain multiple jobs
- Each job runs on a Runner

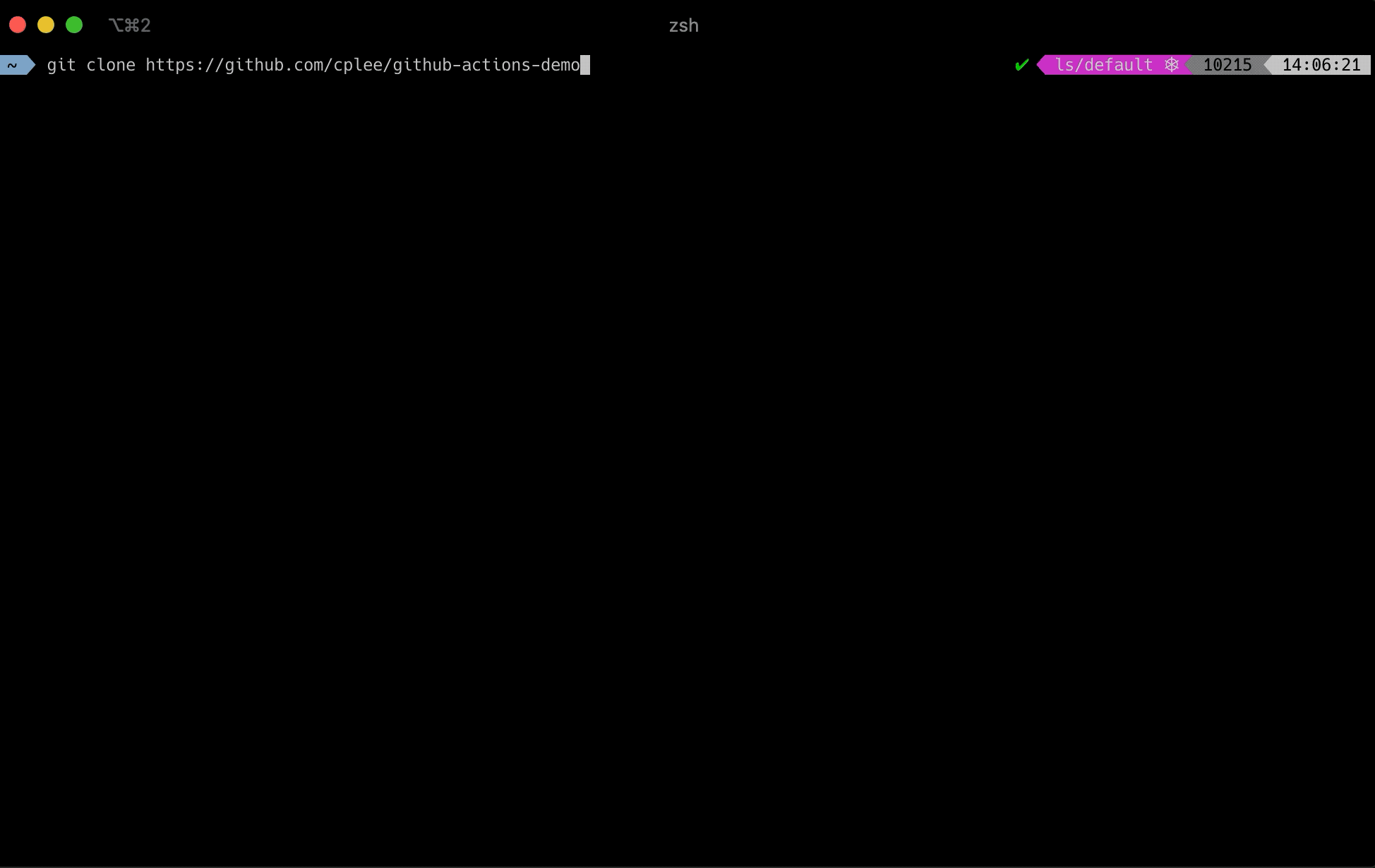

ACT
Run Actions Locally
DEMOS
Security
- Never use structured data as a secret
- Register all secrets used within workflows
- Audit how secrets are handled
- Use credentials that are minimally scoped
- Audit and rotate registered secrets
- Consider requiring review for access to secrets
- Use an action instead of an inline script (recommended)
- Use an intermediate environment variable
- Use OpenID Connect to access cloud resources
- Pin third-party actions to a full length commit SHA
Actions Updates - Dependabot
- Actions are regularly updated for enhanced automation.
- Dependabot keeps GitHub Actions references in workflow.yml up-to-date.
- If newer action versions exist, Dependabot sends an update pull request.
- Dependabot also updates git references for reusable workflows.
.github/dependabot.yml
version: 2
updates:
# See documentation for possible values
- package-ecosystem: "github-actions"
# Location of package manifests
directory: "/"
schedule:
interval: "weekly"
Questions
Resources
Links
https://docs.github.com https://skills.github.com https://docs.github.com/actions/security-guides codebytes/github-actions-demos
