🚀 Ghaymah SRE Practical Exam

Candidate Name: Ahmed Abdelaziz Hussein
Track: Site Reliability Engineering (SRE)

---

📁 Repository Structure

Below is the directory tree of the submission, showing all implementation files:

.
├── common-qabilah
│   └── qabilah-profile.txt
├── q1-deploy-monitor
│   ├── Dockerfile
│   ├── dashboard.html
│   ├── health-check.sh
│   └── status.json
├── q2-postmortem
│   └── postmortem-report.md
├── q3-cicd
│   └── workflow.yml
├── q4-sacalability
│   ├── architecture.png
│   └── calculations.md
└── q5-mithal-monitor
    ├── dashbourd.html
    ├── metrics.json
    └── monitor.py

---

🔧 Technologies Used

The project leverages the following technologies and frameworks:

• Go / Fiber (API Development)
• Docker (Containerization & Multi-stage builds)
• GitHub Actions (CI/CD Pipeline)
• HTML / CSS / JavaScript (Dashboards & Visualization)
• Python (Mithal Automated Monitoring)
• Bash (Monitoring Agent scripts)
• Ghaymah Cloud (Deployment Infrastructure & CLI)

---

📊 Question 1 – Deploy Application & Monitoring

Requirements Covered

Requirement	Status	Details
Dockerfile	✔	Optimized multi-stage build starting from golang:alpine to scratch
Simple Go Fiber API	✔	REST API utilizing the Go Fiber framework
/health endpoint	✔	Returns application health status and current timestamp
/metrics endpoint	✔	Exposes real-time internal metrics (uptime, request count, latency)
Monitoring Script	✔	Bash script performing periodic checks and exporting metrics to JSON
Monitoring Dashboard	✔	Static HTML dashboard to display real-time statuses and metrics
Deployment on Ghaymah Cloud	✔	API deployed live on Ghaymah systems

Files

• q1-deploy-monitor/Dockerfile
• q1-deploy-monitor/health-check.sh
• q1-deploy-monitor/dashboard.html
• q1-deploy-monitor/status.json

Proof of Implementation

The screenshots showcasing the running state are located under docs/screenshots/:

1. Deployment on Ghaymah Cloud

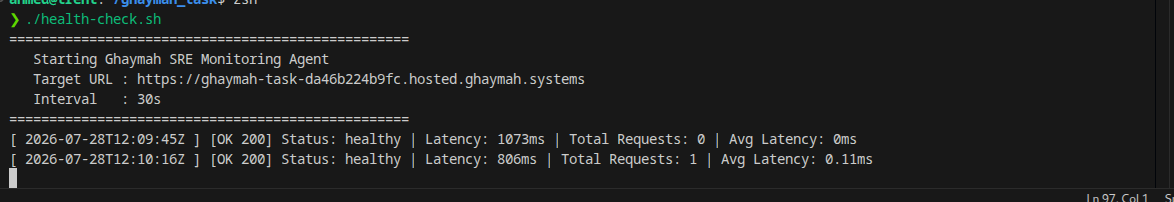

2. Monitoring Script Running

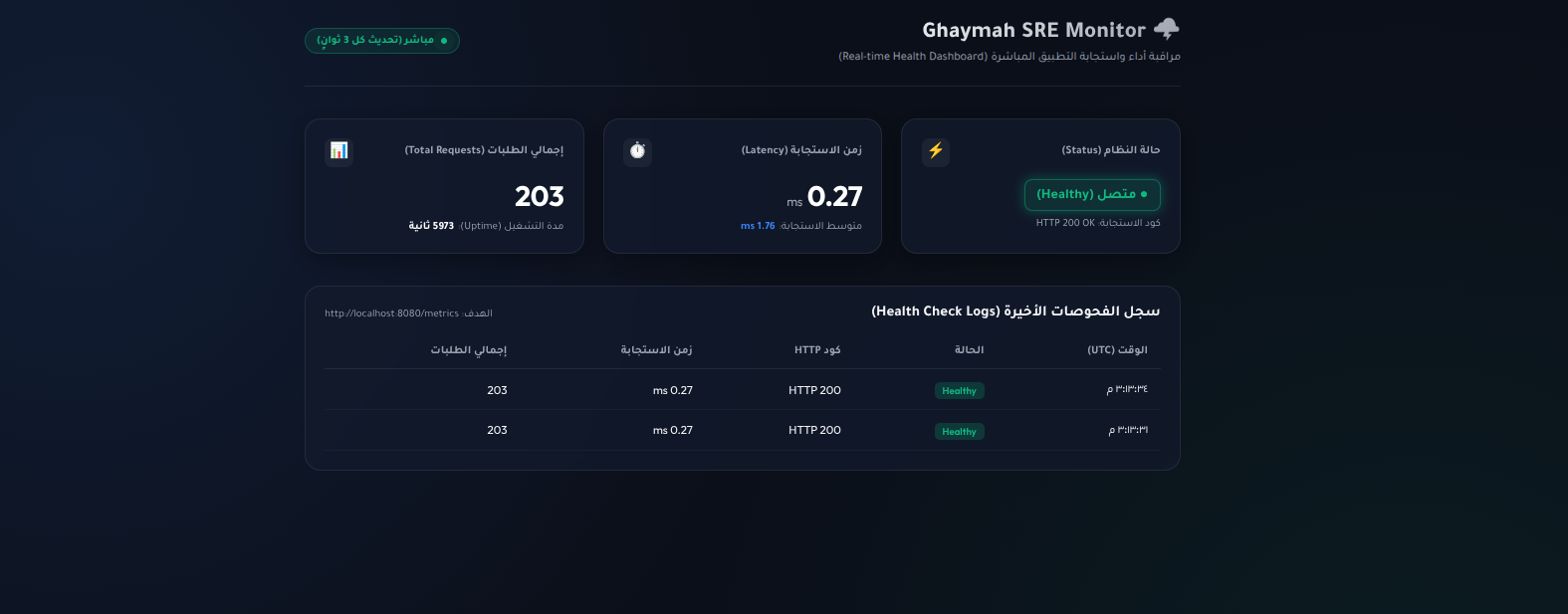

3. Dashboard

---

📑 Question 2 – Incident Postmortem

Requirements Covered

• Executive Summary (Incident metadata, downtime duration, root cause, impact)
• Timeline (Detailed chronological sequence of events from spike to resolution)
• Root Cause Analysis (RCA) (Detailed diagnosis of resource limits and missing HPA)
• Recommendations (Immediate P0 fixes and long-term action items)
• Auto Scaling Policy (Configured Horizontal Pod Autoscaler YAML config for Ghanimah)
• Monitoring Strategy (Prometheus alert rules for early warning and OOM checks)

Files

• q2-postmortem/postmortem-report.md

---

⚙️ Question 3 – CI/CD Pipeline

Requirements Covered

• Docker Build: Builds container images on triggers.
• Container Registry: Image tagging for version control.
• Deploy to Staging: Triggered automatically on release branches.
• Manual Approval: Gatekeeping promotion using GitHub Environments rules.
• Deploy to Production: Triggered on main branch post-approval.
• Ghaymah CLI Integration: Automated login and app launch in workflow jobs.

Deployment Flow Diagram

Push
  ↓
Build
  ↓
Deploy Staging
  ↓
Manual Approval
  ↓
Deploy Production

Files

• q3-cicd/workflow.yml

Proof of Implementation

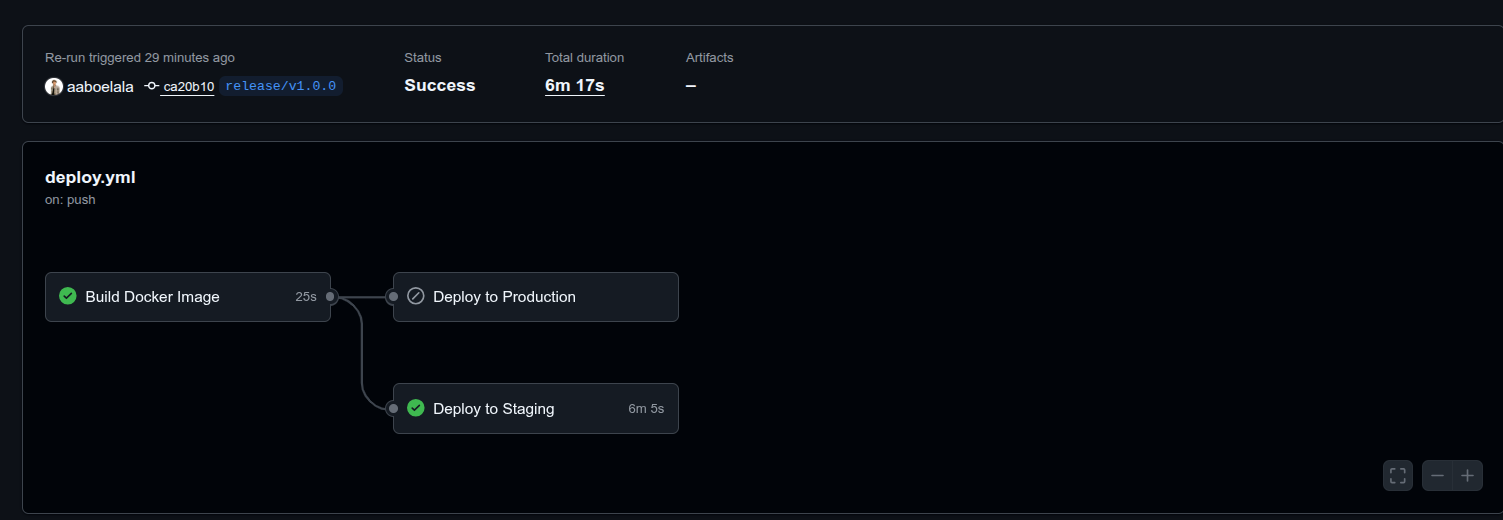

1. Staging Deployment

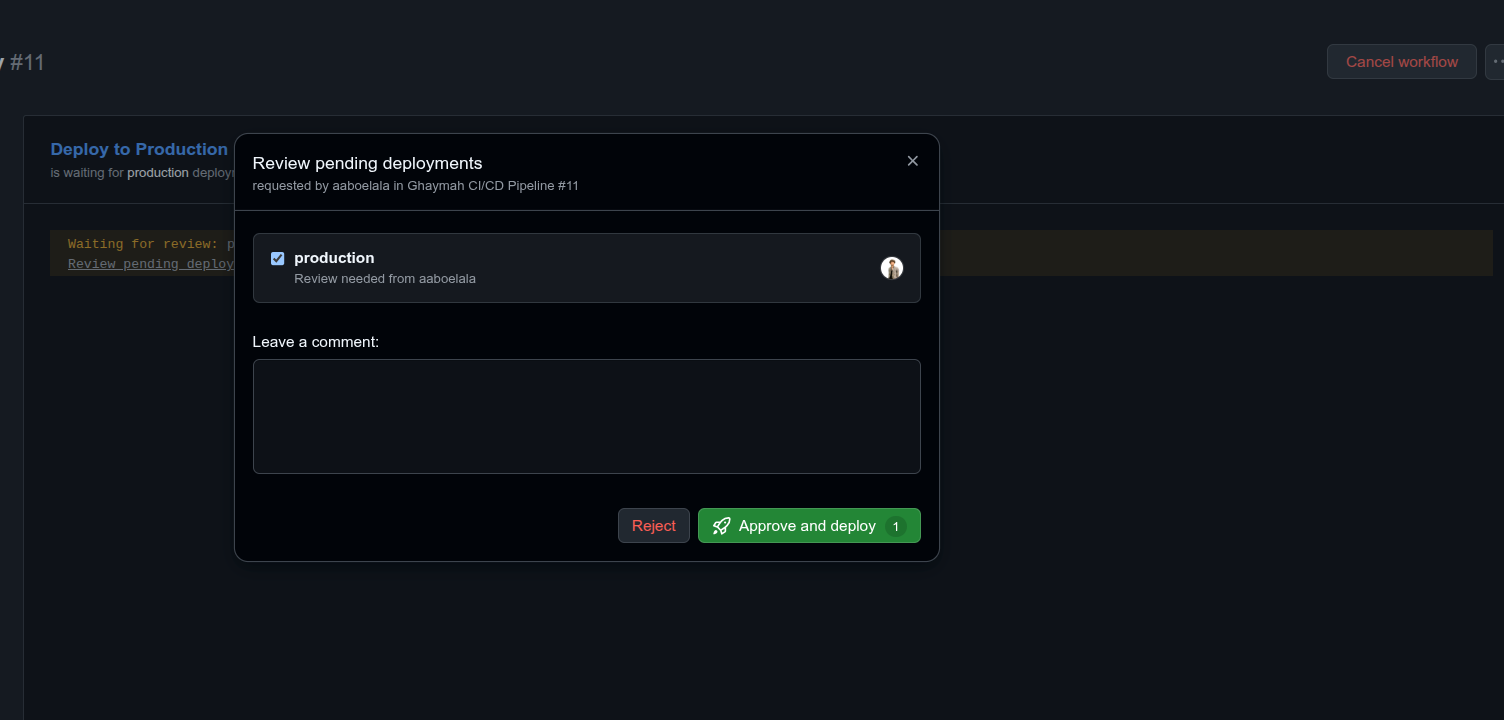

2. Manual Approval

3. Production Deployment

---

📈 Question 4 – Scalability & Load Balancing

Requirements Covered

• Architecture Diagram (Visual flow of requests to handle 15,000 req/s across zones)
• Capacity Calculation (Calculations justifying 39 Pods based on limits and 30% safety buffer)
• Cold Start Strategy (Multi-stage scratch image design, pre-warming, and probe tuning)
• Block Storage (Dynamic PV/PVC configurations utilizing Ghanimah Block Storage NVMe disks)

Files

• q4-sacalability/calculations.md
• q4-sacalability/architecture.png

---

🖥️ Question 5 – Mithal Monitoring Dashboard

Requirements Covered

• Latency Monitoring: Measures and logs home page loading speeds.
• Uptime Monitoring: Tracks availability and monitors return status codes.
• SSL Monitoring: Calculates certificate expiration and counts remaining days.
• DNS Monitoring: Resolves and logs lookup times.
• Search Response Monitoring: Assesses specific query parameters response time.
• JSON Storage: Logs state to dynamic history files up to 24 hours.
• Dashboard: An interface displaying key charts and status panels.
• Deployment on Ghaymah: Live monitor configuration on Ghaymah infrastructure.

Files

• q5-mithal-monitor/monitor.py
• q5-mithal-monitor/metrics.json
• q5-mithal-monitor/dashbourd.html

Proof of Implementation

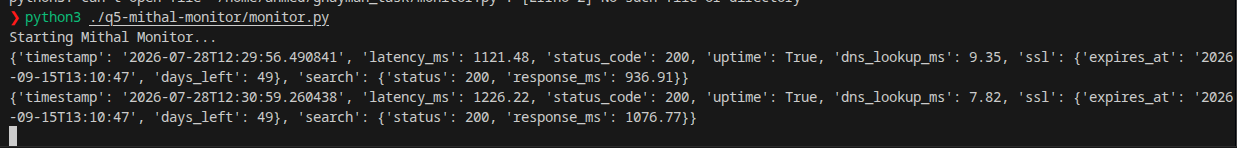

1. monitor.py Running

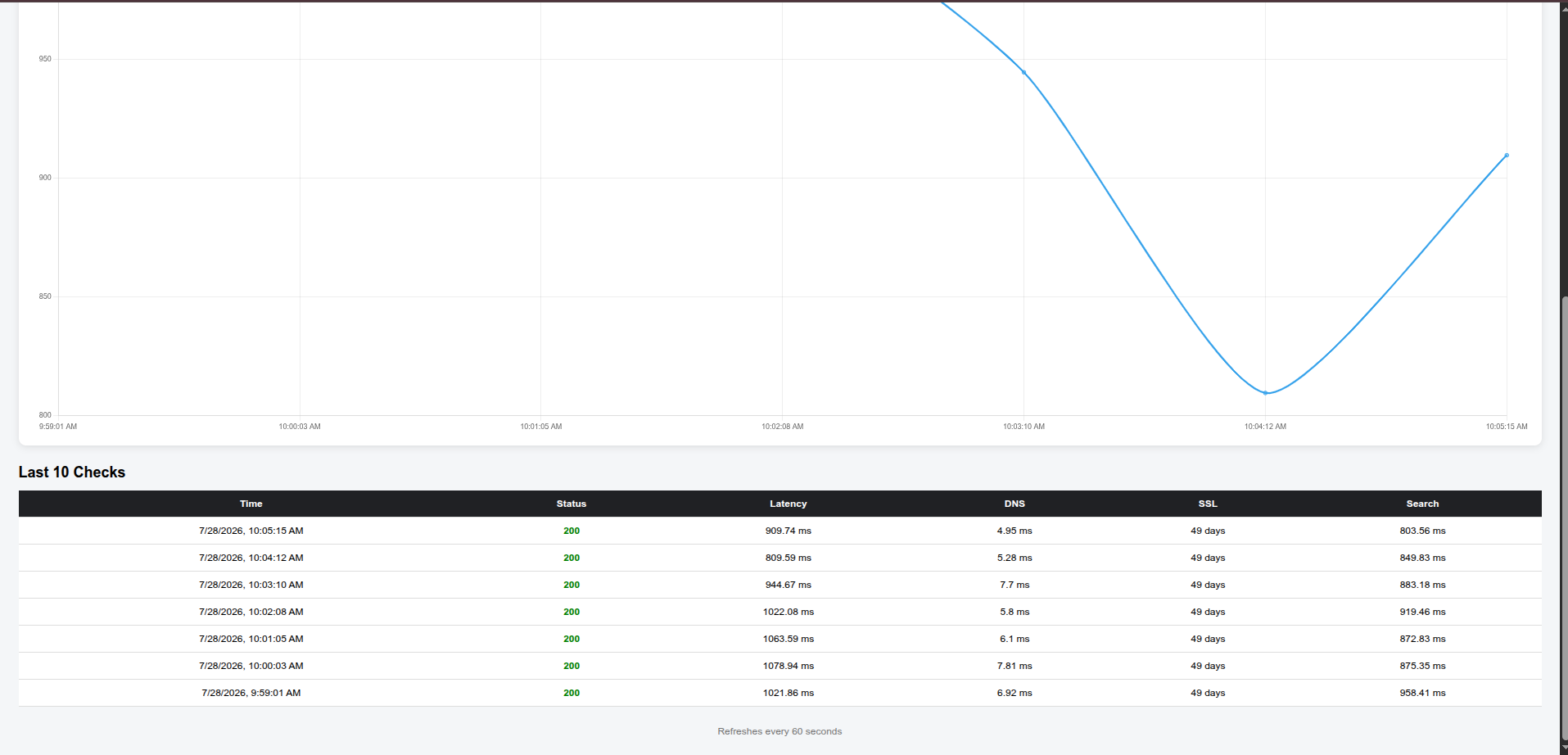

2. Dashboard

---

🏃 Running Locally

Question 1 – Go API & Monitoring Agent

To test the Go Fiber API and the monitoring scripts locally:

1. Build and Run the Go API via Docker:

   # Build the container image
   docker build -t ghaymah-sre-api ./q1-deploy-monitor

   # Run the container exposing port 8080
   docker run -d -p 8080:8080 --name ghanimah-api ghaymah-sre-api


2. Run the Bash Monitoring Agent:

   # Point the agent to the locally running Docker container
   API_URL=http://localhost:8080 bash q1-deploy-monitor/health-check.sh


3. View the Dashboard: Open q1-deploy-monitor/dashboard.html directly in a web browser of your choice.

---

Question 5 – Mithal Automated Monitor

To test the Python monitoring daemon locally:

1. Install Dependencies:

   pip install requests


2. Run the Monitor Script:

   python3 q5-mithal-monitor/monitor.py


3. View the Mithal Dashboard: Open q5-mithal-monitor/dashbourd.html in your browser to view historical metrics.

---

✨ Project Highlights

This repository demonstrates complete implementation of fundamental Site Reliability Engineering practices:

• Containerization: Clean multi-stage lightweight builds (Go statically-linked binary in a scratch container).
• Monitoring & Observability: Real-time metrics gathering, system state logging, alerts modeling, and custom front-end status dashboards.
• CI/CD: Automated builds, environments targeting, manual approvals, and deployment orchestrations.
• Incident Analysis: Professional blameless postmortem report detailing timelines, root cause analysis, action items, auto-scaling thresholds, and early discovery strategies.
• Scalability: Quantitative capacity sizing for high-traffic environments (15,000 req/s), Cold Start tuning, and stateful volume management.
• Cloud Deployment: Orchestration using the Ghaymah Cloud platforms.

---

✍️ Author

Ahmed Abdelaziz Hussein
Information Systems
Faculty of Computers and Information
Qabilah Profile: ahmed-abdelaziz-89943a271
