SIEM Engineering & Deployment Architecture
Architecture Overview
The custom SIEM engine is deployed as a high-availability service within the Ghaymah Kubernetes cluster, leveraging Ghaymah Block Storage for persistent log retention.
graph TD
subgraph Ghaymah Kubernetes Cluster
F[Fluentd DaemonSet] -->|Writes Logs| PVC[(Block Storage PVCs)]
W[Wazuh Manager] -->|Alerts| PVC
subgraph siem-system Namespace
PVC -->|Reads| SE1[SIEM Engine Pod 1]
PVC -->|Reads| SE2[SIEM Engine Pod 2]
SE1 -->|REST API| DP[Dashboard Pod Nginx]
SE2 -->|REST API| DP
end
end
DP -->|HTTPS :8000| U((Security Analyst))
Warning
Scalability Limitations (Proof of Concept): This current Python implementation utilizes in-memory dictionaries (
threading.Lock()) for state tracking. While sufficient for this internship assessment, a production deployment requires decoupling log ingestion via Kafka and pushing state tracking (e.g., IP Reputation) to a fast key-value datastore like Redis to survive volumetric DDoS attacks.
Detection Logic & Alert Workflow
The engine continuously tails log files and applies regex-based detection signatures.
The workflow is: Log Ingestion → Signature Match → Threshold Evaluation → Alert Generation.
Dashboard Features
- Real-Time Log Tailing: Websocket-driven log streaming.
- Threat Intelligence: Automated cross-referencing against bad IP lists.
- Metric Aggregation: Real-time charting of HTTP status codes and attack distributions.
Evidence & Screenshots

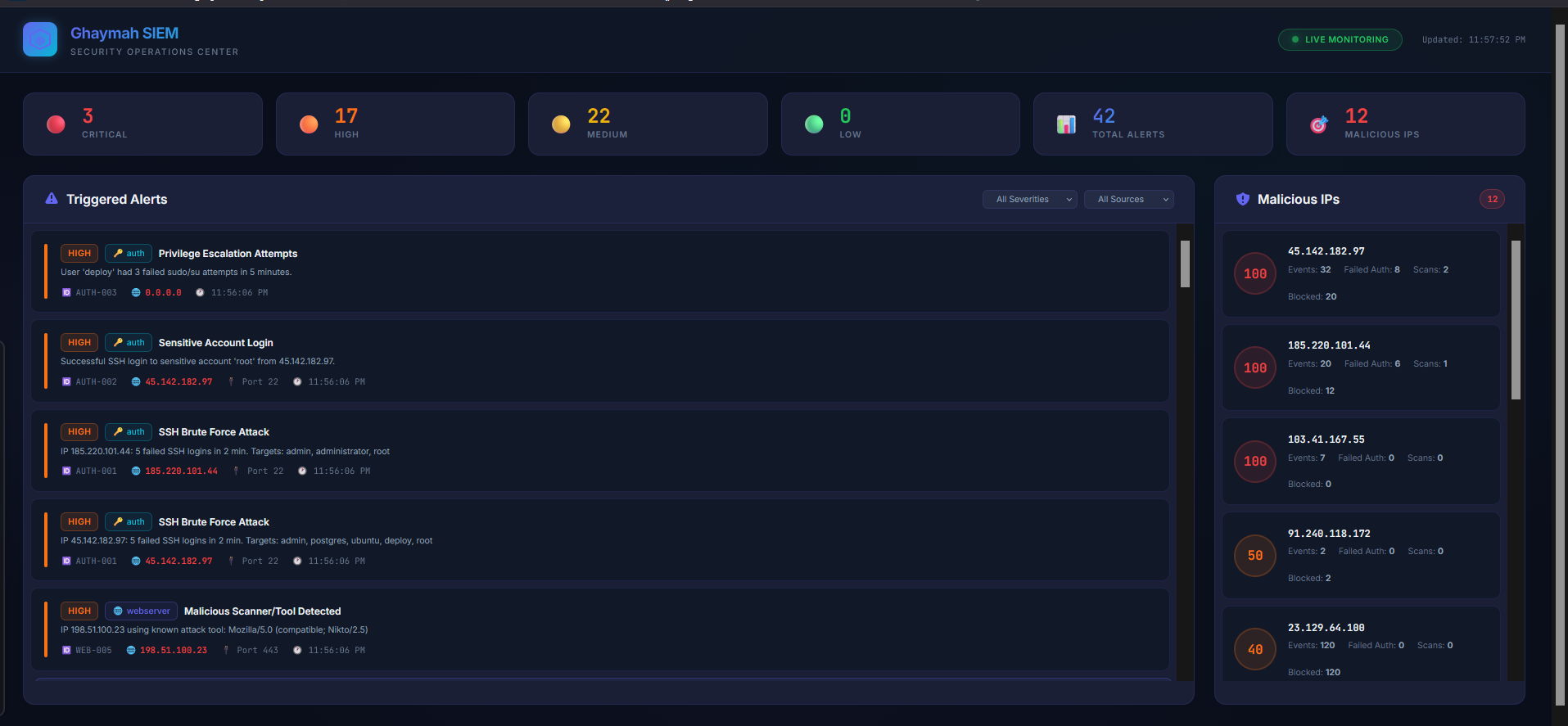

Evidence EV-009 — SIEM UI Overview
Observation
The dashboard successfully visualizes incoming logs, parsing critical fields (Timestamp, Source IP, Method, Status, User-Agent) in real-time.
Risk
Without this visibility, SOC analysts must manually grep gigabytes of raw text logs during an incident.
Security Relevance
Addresses the NIST CSF requirement for continuous monitoring.

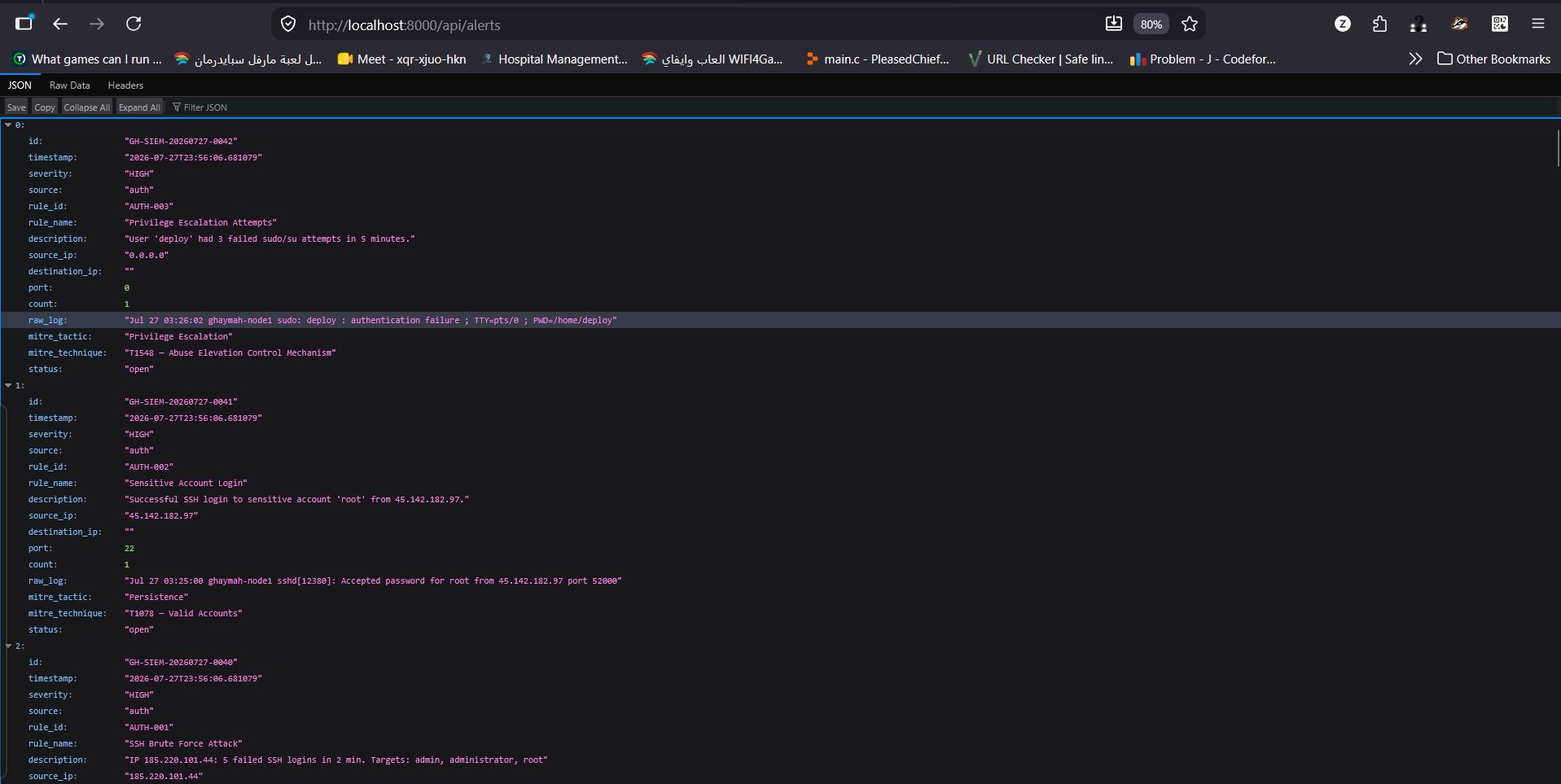

Evidence EV-007 — Real-Time Alert Generation
Observation
The engine detects SQL Injection attempts (UNION SELECT) and path traversal attacks (../../../etc/passwd) within milliseconds of ingestion.

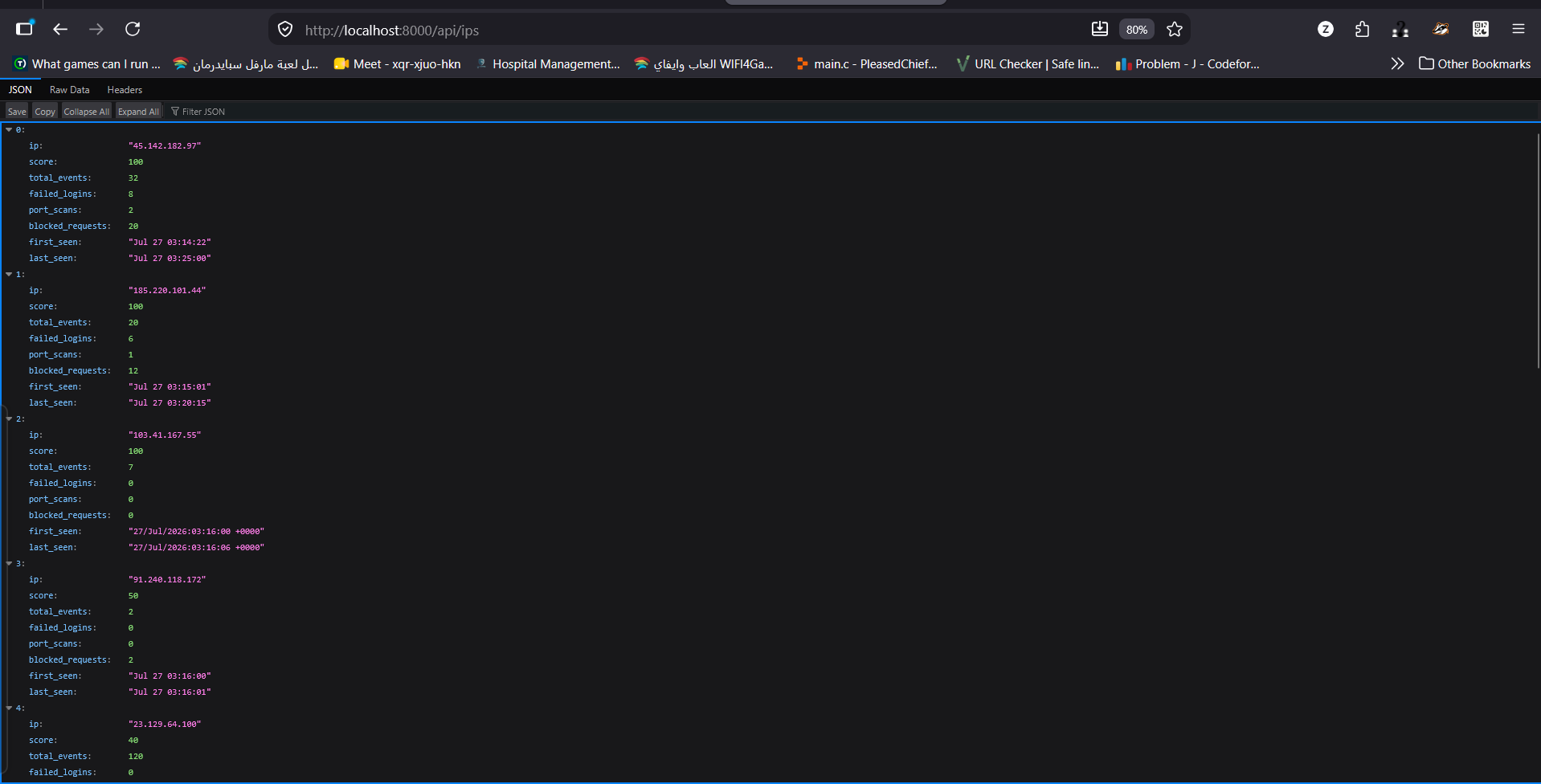

Evidence EV-008 — IP Reputation Tracking
Observation
The state-tracking engine aggregates hostile actions by IP address, allowing analysts to quickly identify the primary source of distributed attacks.
Future Improvements
- Kafka Integration: Implement Kafka topics for resilient log queuing.
- Redis State Store: Offload IP reputation tracking to Redis.
- Machine Learning: Integrate anomaly detection algorithms to identify "low and slow" attacks that evade static thresholds.
